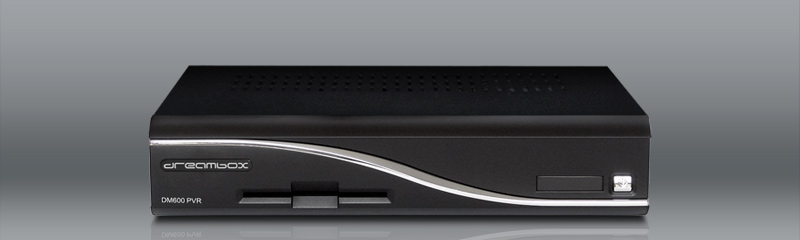

DM600 PVR

What is DM600 PVR?

Powerful receiver for digital TV and Radio programs.

available at present:

• DM600 S for satellite receiving
• DM600 T for terrestrial receiving
• DM600 C for your cable connection
• Tuner modules, Plug&Play

Main features are a 250 MHz PowerPC (350 Mips), Linux OP, the Dreambox DM600 supports the Standard Linux API, harddisk support

• 10/100MBit compatible Ethernet Interface
• DSL communication port

Install IPTV via autoscript bouquet list on Enigma2

Setup IPTV using XtreamTV plugin in Enigma 2

How to flash your Dreambox DM600 PVR

Technical Features

DreamBox DM600 technical data

DBS-Tuner:
Frequency Range 950 …. 2150 MHz
Signal Level – 65 dBm …. – 25 dBm
Signal-to-Noise Level 12 dB max.
DBS-Tuner Input Connector F-Type female
Input Impedance 75 Ohm
AFC +/- 3 MHz
Demodulation Shaped QPSK
FEC Viterbi and Reed-Solomon
Viterbirate 1/2, 2/3, 3/4, 5/6, 7/8
Roll-off Factor 35 %
Demultiplexing according to ISO 13818-1

Output analog:
Output Level L/R 0,5 Vss on 600 Ohm
THD > 60 dB (1 kHz)
Crosstalk < -65 dB

Output digital:
Output Level 0,5 Vss on 75 Ohm
Sampled Data Filtering 32 kHz, 44.1 kHz, 48 kHz
S/PDIF-Output optical (AC3)

Video parameter:
Input Level FBAS 1 Vss +/- 0.3 dB on 75 Ohm
Teletext filter in conformity with ETS 300 472 Standard

TV-Scart:
Output: FBAS, RGB, S-Video

Serielle Interface RS 232:
Typ RS232 bidirectional
Bitrate 115,2 kBit/s max.
Plug Connector SUB-D-9
Function: Update of Firmware

Ethernet:
10/100 MBit compatible interface
Function: Update of Firmware

IDE Interface:
Intern for connect 2,5″ HDD

LNB Power and polarisation:
LNB Current 500mA max. ; short-circuit-protected
LNB Voltage vertical < 14V no load, > 11,5V at 400mA
LNB Voltage horizontal < 20V no load, > 17,3V at 400mA
LNB shut-off at Standby-Mode

Count of active satellite position:
DiSEqC 1.0/1.1/1.2 and USALS (Rotor Control)

Power consumption:
< 15W / 12V

Input voltage:
DC12V +/- 15%

Extern power supply:
Input: 110-240V AC / 50-60Hz / 0,6A
Output: 12V = / 2A

Physical specification:
Ambient Temperature +15°C…+35°C
Humidity < 80%
Size (W x D x H): 195 mm x 130 mm x 40 mm
Weight: 0,6 kg
