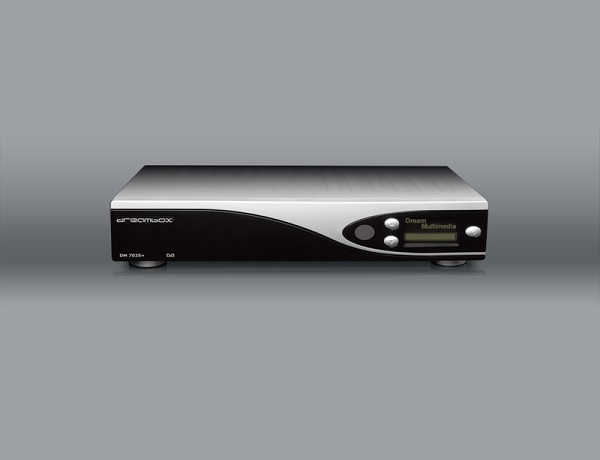

DM7025+

What is DM7025+?

Powerful receiver for digital TV and Radio programs..

Main features are a 300 MHz processor; the Dreambox DM7025+ supports the Linux TV API

• 10/100MBit compatible Ethernet Interface
• Twin-Tuner DVB-S, DVB-C or DVB-T
• plug & play, mixable
• big size OLED display

Technical Features

• 300 MHz MIPS Processor
• Enigma 2, Linux Operating System
• big-size OLED – Display
• MPEG-2 Hardware decoding, DVB-S
• TWIN Tuner, mixable, Plug&Play
• Tuner: DVB-S, DVB-C und DVB-T, pluggable
• 1 x DVB Common-Interface Slot
• 2 x Smartcard-Reader (Dreamcrypt CA)
• V.24/RS232 Interface
• Integrated Compact Flash Slot
• 10/100 MBit compatible Ethernet Interface
• 1 x USB
• S/PDIF Interface for digital bit stream out (AC-3)
• 2 x Scart-interfaces
• RF modulator
• Audio/Video cinch out
• 32 MByte Flash, 128 MByte RAM
• integrated IDE Interface
• Support for internal IDE HDD 3,5 inch in any capacity

• unlimited channel lists for TV/Radio
• channel-change time < 1 second
• automatic service scan
• directly bouquet-lists
• EPG (electronic program guide)
• Videotext Decoder
• multiple LNB-Switching control (DiSEqC)
• OSD in many languages and skin-support



Setup IPTV using XtreamTV plugin in Enigma 2

Install IPTV via autoscript bouquet list on Enigma2

Flashing a new firmware (image)

Flashing a new firmware with Browser

Flashing a new firmware with DreamUp


Firmware / Image	Date
Release 3.1.0	23.03.2011



User manual DM7025
(PDF – English, for Release from 25.10.2007)

User manual for OLED-Upgrade-Kit modification
(PDF – English from 08.11.2007)



Flash firmware (Image):

… aren’t that easy anymore. Because NAND flash can contain bad sectors, everything is getting a bit more complex. We introduced a special format called “nfi”, which contains a header (and possibly a CRC) and 3 different partitions: (loader, boot, root).
You can flash this either with the bootloader directly (using a special HTTP client or using a browser), or using a special version of Dreamup.

If you don’t have a network or trashed your second stage loader, you can flash using only a serial cable.

DreamBox DM7025+ technical data

DBS-Tuner:
Frequency Range 950 … 2150 MHz
Signal Level – 65 dBm … – 25 dBm
Signal-to-Noise Level 12 dB max.
DBS-Tuner Input Connector F-Type female
Input Impedance 75 Ohm
AFC +/- 3 MHz
Demodulation Shaped QPSK
FEC Viterbi and Reed-Solomon
Viterbirate 1/2, 2/3, 3/4, 5/6, 7/8
Roll-off Factor 35 %
Demultiplexing according ISO 13818-1

Common-Interface:
Common-Interface Power Consumption max. 0,3A/5V

Video decoder:
Video Compression MPEG-2 and MPEG-1 compatible
Video Standard PAL G/ 25 Hz, NTSC
Video Formats 4:3 / 16:9
Letterbox for 4:3 TV-Device

Audio decoder:
Audiokompression MPEG-1 & MPEG-2 Layer I and II, MP3
Audio Mode Dual (main/sub), Stereo
Frequency: 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz

Output analog:
Output Level L/R 0,5 Vss on 600 Ohm
THD > 60 dB (1 kHz)
Crosstalk < -65 dB

Output digital:
Output Level 0,5 Vss on 75 Ohm
Sampled Data Filtering 32 kHz, 44.1 kHz, 48 kHz
S/PDIF-Output optical (AC3)

Video parameter:
Input Level FBAS 1 Vss +/- 0.3 dB on 75 Ohm
Teletext filter in conformity with ETS 300 472 Standard

TV-Scart:
Output: FBAS, RGB, S-Video

VCR-Scart:
FBAS

Serielle Interface RS 232:
Typ RS232 bidirectional
Bitrate 115,2 kBit/s max.
Plug Connector SUB-D-9
Function: Update of Firmware

Ethernet:
10/100 MBit compatible interface
Function: Update of Firmware

USB:
USB 1.1 connector

UDMA100 IDE Interface:
for internal HDD
Compact Flash – Reader

LNB power and polarisation per tuner:
LNB Current 500mA max.; short-circuit-protected
LNB Voltage vertical < 14V no load, > 11,5V at 400mA
LNB Voltage horizontal < 20V no load, > 17,3V at 400mA

Count of active satellite position:
DiSEqC 1.0/1.1/1.2 and USALS (Rotor Control)

Power consumption:
< 30W (in operation, horizontal polarization / 400mA LNB current)
< 25W (in operation, no LNB)
< 10W (Deep-Standby-Mode)

Input voltage:
230V / 50 Hz alternating current +/- 15%
110V / 60 Hz alternating current +/- 15%

Physical specification:
Ambient Temperature +15°C…+35°C
Humidity < 80%
Size (W x D x H): 374 mm x 230 mm x 75 mm
Weight: 1,8 kg  without HDD
